Friday, December 28, 2012
Yes, its live at last. You can find it here. Let the coiling begin!

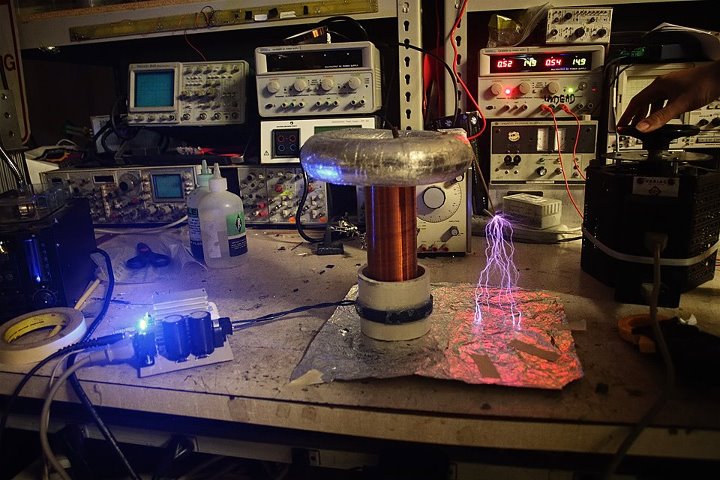

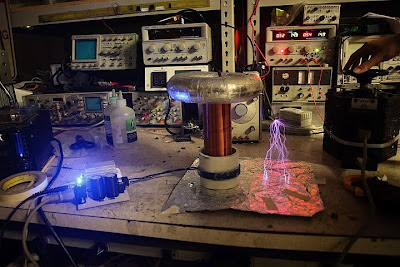

oneTesla is a small DRSSTC with the entire driver (tank cap, voltage doubler, bridge, and logic) all on one PCB.
Tech specs:
200Apk, 270V bus, 40 uS ON@200BPS, 60VA out of the wall. Sparks are ~6" long
The interrupter lives in a separate box, and is coupled into the driver with coaxial cable. This works OK, though there are still some noise issues that cause the pulsewidth to fluctuate.

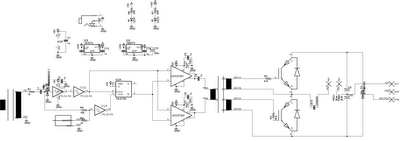

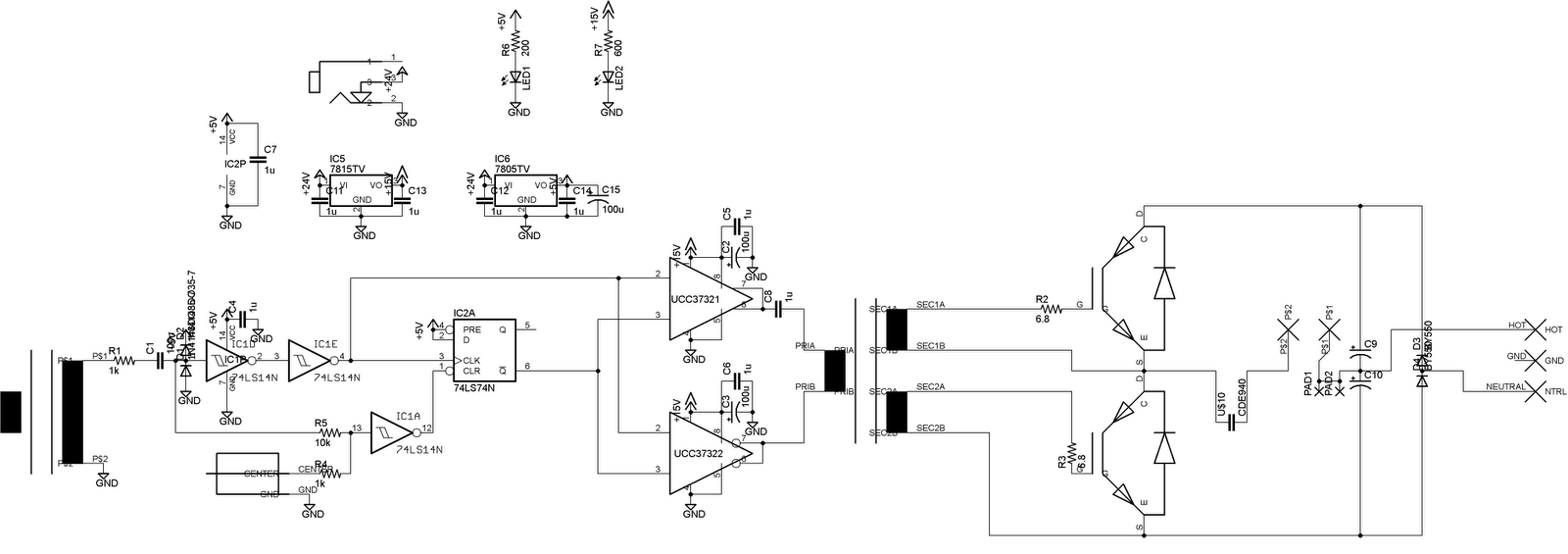

Schematic:
Get the Eagle board files [here] if you want to make one...its not quite perfectly reliable yet (in particular, it probably needs a optoisolated interrupter), but it does 6 or 7 inches at 100W fine.
If you're incredibly lazy, the DigiKey order for the most of the components (not the 40N60's), is [here]
Random photos:

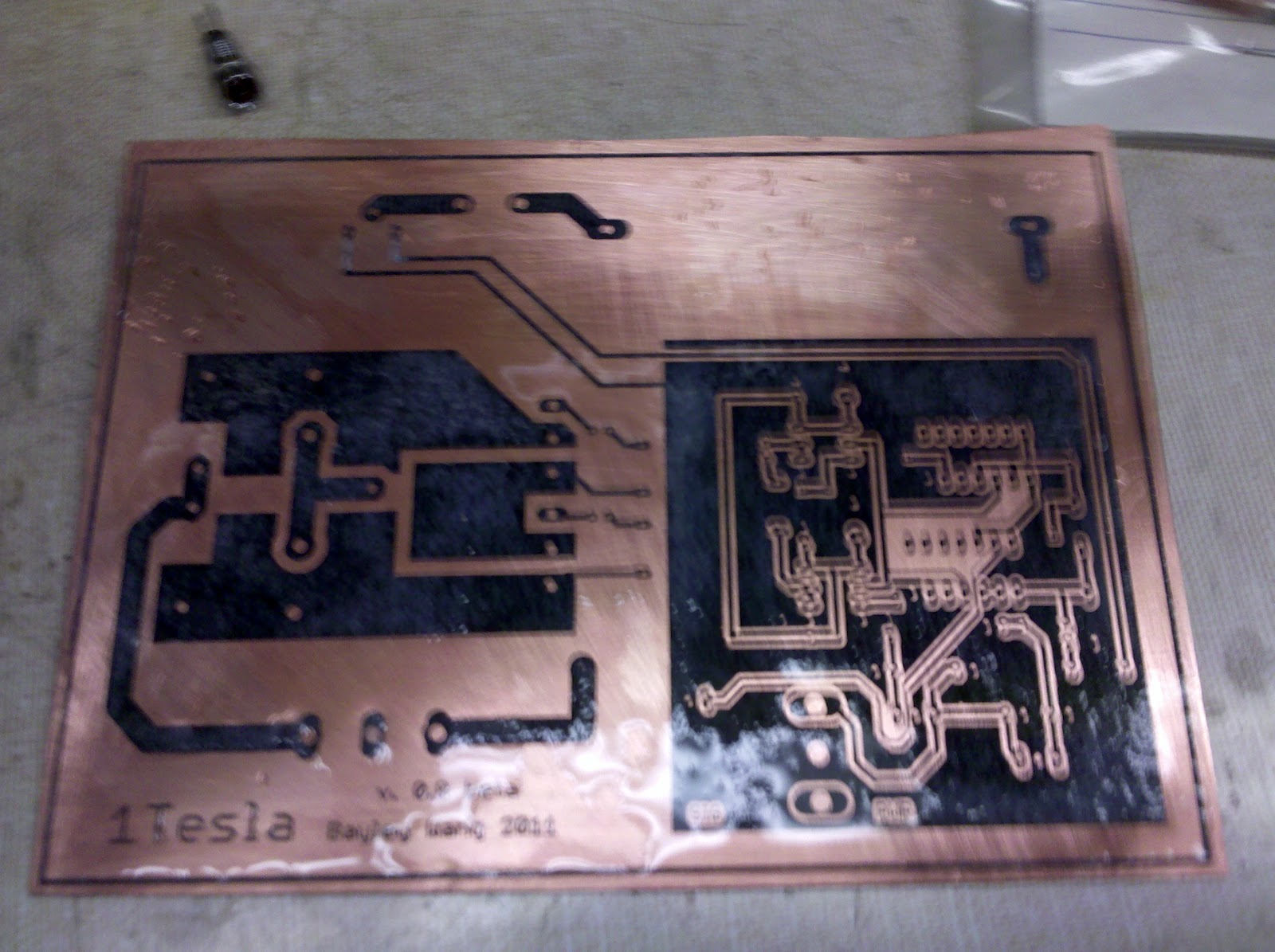

Board ready to etch

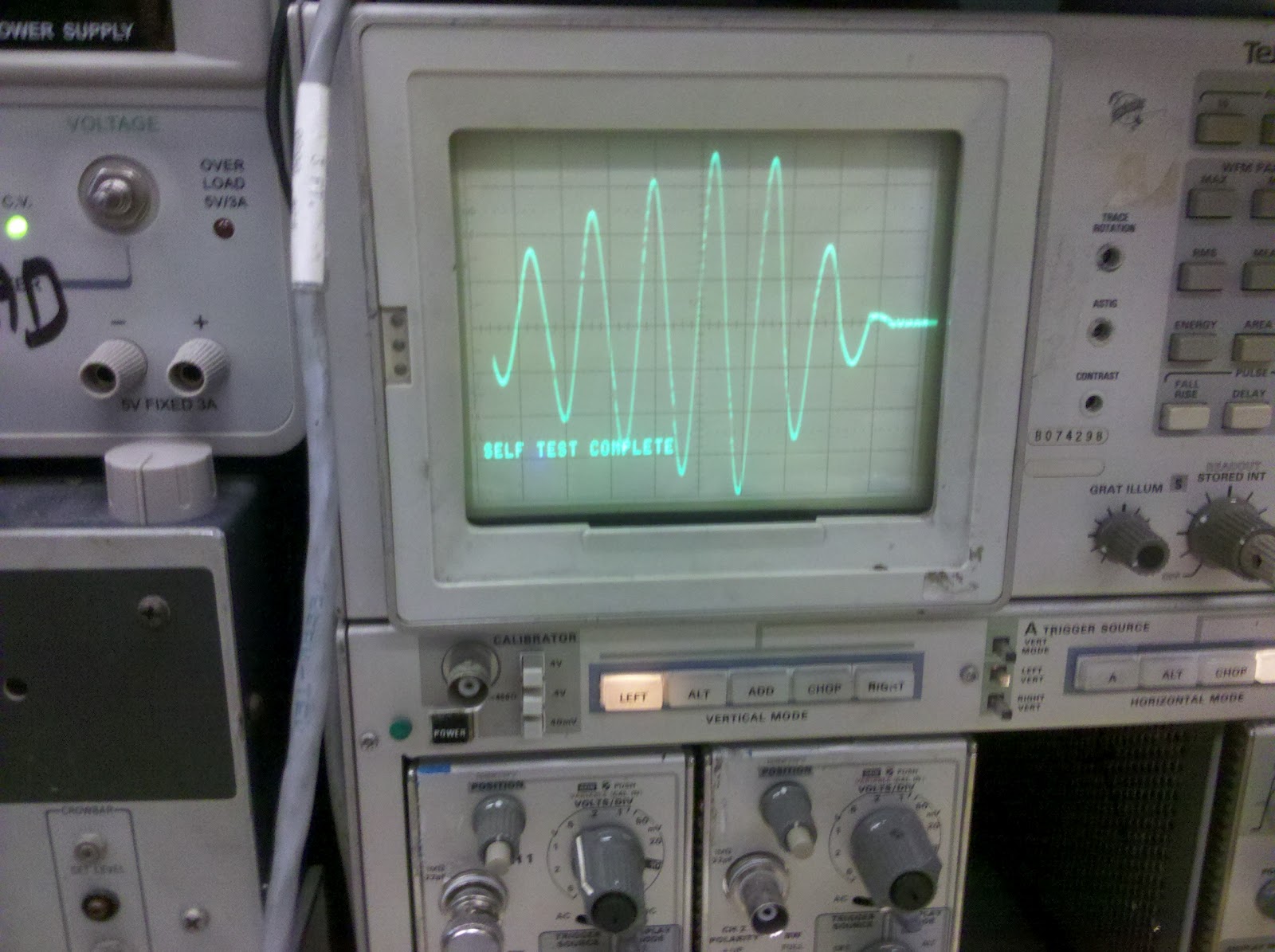

Primary current

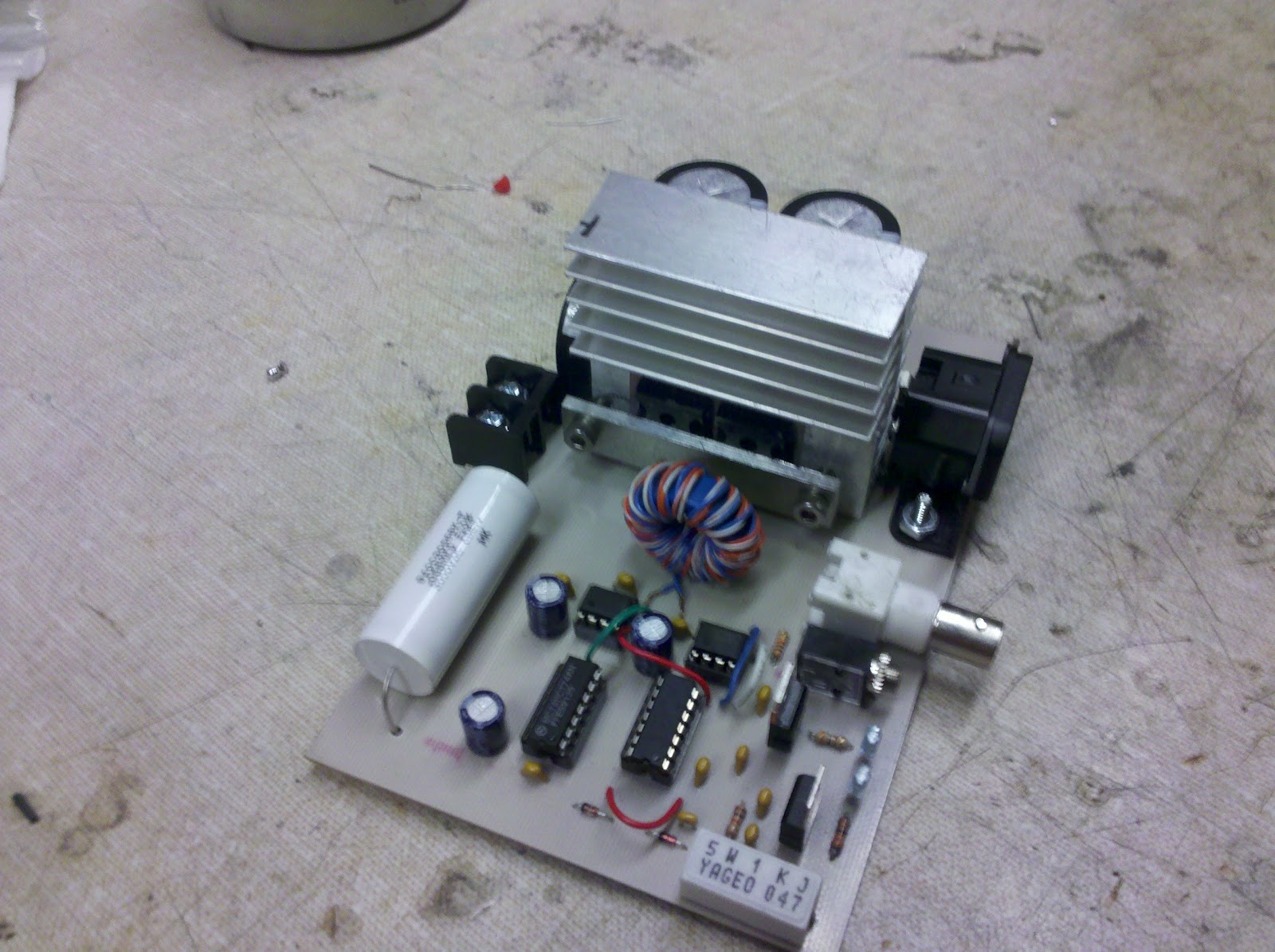

Assembled board

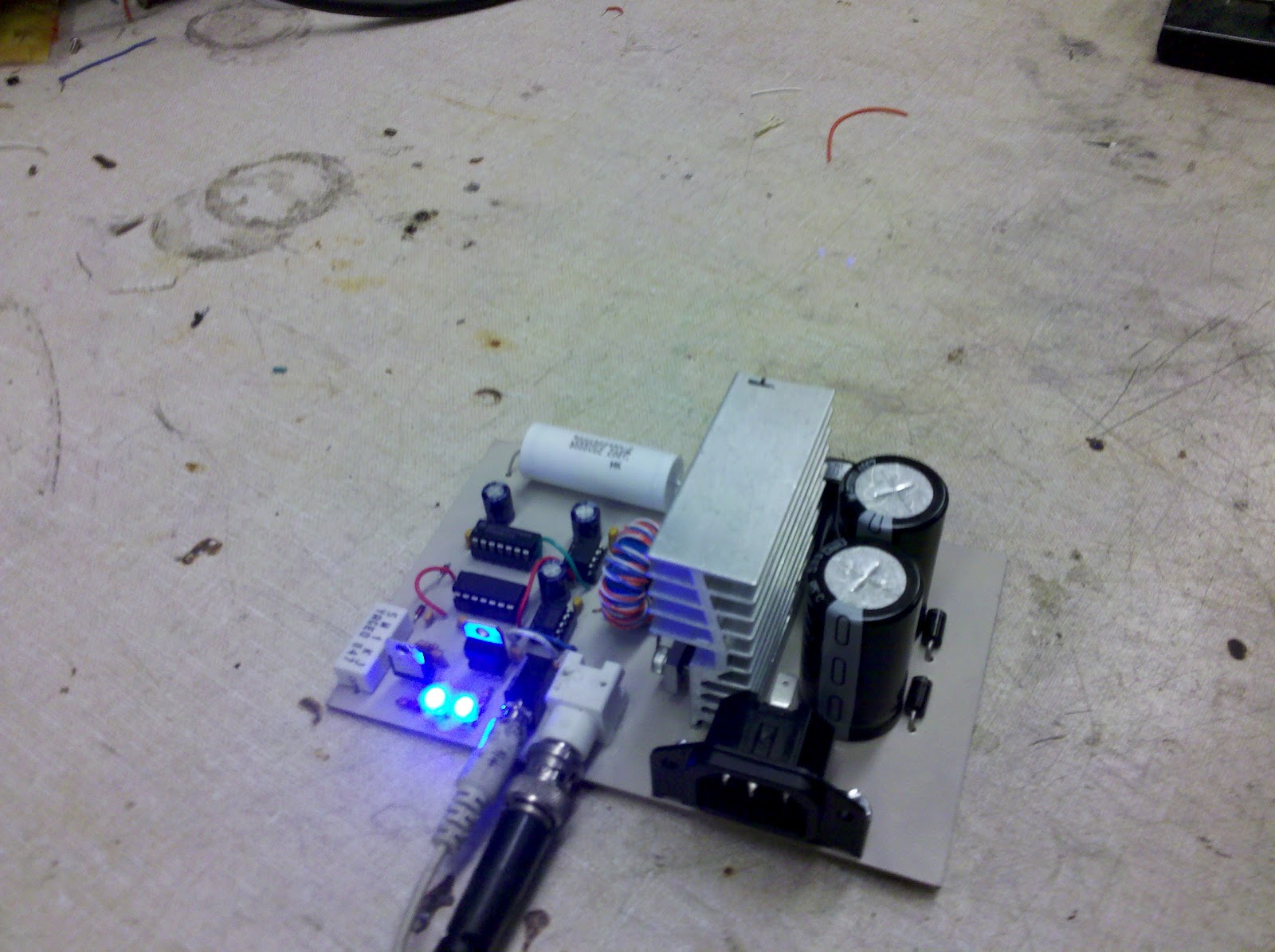

Blindingly bright blue lights
